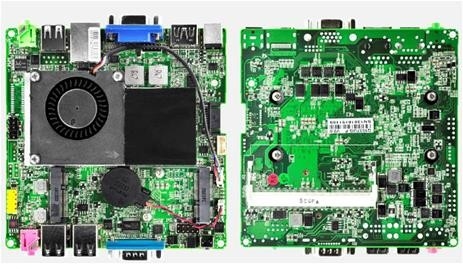

Mini PC Motherboard , Interl 1037U 2core , 1 X HDMI Interface, 1 X VGA Connection
Product Description:
Industrial control ITX series industrial motherboard, supporting Intel ® Baytail-I/M/D series CPU. It is equipped with a high-resolution 1 X HDMI Interface and 1 X VGA Connection for enhanced visual clarity, as well as Realtek ALC662 HD Audio for superior audio performance. Additionally, it is available with either 32G EMMC or 64G EMMC storage, and can be configured with an external power supply via BIOS Setting. For convenience, it is also fitted with a convenient power interface featuring an outer diameter 3.5mm and inner diameter 1.35mm.
Features:
1. CPU : Intel 1037U 1.8GHz 2-core
2. Display: Intel high-definition graphics card, dual display
3. Network: 1 x Realtek RTL8111F
4. Audio : Realtek ALC662 HD audio
5. Cooling: heat dissipation, with fan
Technical Parameters:
| Internal interface |
| Memory slot |
Supports 1 DDR31333/1600 laptop memory, up to 8GB |
| M-SATA |
Default full height solid-state drive interface |
| SATA |
SATA 3.0 standard socket |
| SATA power supply |
2.0mm spacing socket |
| Mini PCle |
Half height specification, supporting WIFI module |
| SIM card holder |
Not supported |
| Serial port pin |
nothing |
| VGA pin |
2.0mm spacing needle arrangement (optional) |
| Power pin |
nothing |
| Incoming power on |
BIOS support |
| LVDS |
Support (customization required) |
| GPIO |
Not supported |
| Fan socket |
CPU fan power socket |
| USB extension |
2.54mm spacing row pins, expandable to 2 USB 2.0 |
| Audio extension |
2.54mm spacing needle arrangement |
Support and Services:
AIO Desktop PC and mainboard for Industrial mini PC offers a variety of technical support and service options to ensure that customers have the best experience possible.We provide support for hardware, software, and other technical issues, as well as troubleshooting and installation assistance. We also provide online and phone support, and can help with warranty and service inquiries. Additionally, we offer a variety of training and tutorial materials to help customers get the most out of their AIO Desktop PC.We are committed to providing our customers with the highest level of customer service and technical support. If you have any questions or need assistance with your AIO Desktop PC, please contact us and we’ll be happy to help.
FAQ:
Q: What is the Brand Name of this product?
A: DJTech or OEM.
Q: What is the model number?
A: Intel 1037U 2core
Q: Where is this product made?
A: This product is made in CHINA.
Q: Does this product have any certifications?
A: Yes, this product has CE and UL certifications.
Q: What is the minimum order quantity?
A: The minimum order quantity is 50.
Q: How much does this product cost?
A: The price is negotiable.
Q: How long does it take to deliver this product?
A: It takes about 3~4 weeks to deliver this product.
Q: What are the payment terms?
A: The payment terms are T/T in advance.
Q: How many PCS can be supplied each month?
A: We can supply 100KPCS each month.
